Create a healthier, more comfortable home to live in

ComfoAir 200

Heat Recovery Unit

The ComfoAir 200 provides maximum comfort and healthier living spaces in homes with high ventilation requirements. It uses a high efficiency counter-flow heat exchanger that can recover up to 95% of heat.

A compact and centralised heat recovery system

The Zehnder ComfoAir 200 is a compact, energy efficient heat recovery ventilation system that is well suited to horizontal in-ceiling spaces as well as vertical wall mounted installations.

The ComfoAir 200 provides a healthier, well ventilated indoor space with simple and quiet operation. It extracts the heat energy from the exhaust air leaving wet rooms such as kitchens and bathrooms, and transfers this to the fresh, filtered supply air which is drawn in from outside.

This is achieved using the high efficiency counter-flow heat exchanger which can recover up to 95 % of the heat.

  • Unique counter-flow heat exchanger maximises heat recovery while minimising air resistance
  • Ultra-quiet EC fans can be adjusted in 1% increments for total occupant comfort control
  • Energy efficient EC motor with reverse polarity protection, locked rotor protection and soft starting
  • Automatic 100% filtered bypass
  • Certified as an official Passive House component by the Passivhaus Institut
  • Weight: 30kg
  • Ducting:
    • Internal Ø - 125mm
    • Two step external Ø -
    • either 150mm or 160mm
  • Condensate connection: 20mm
  • Construction: Internal body - EPP, unit housing - coated steel
  • Fan motors: EC
  • Filters: Extract - G4, Supply - F7
  • Model NoEnergy consumption in WattsSound Level @ 0m in db(A)
    • low = air flow setting @ 40% motor speed
    • Med = air flow setting @ 60% motor speed
    • High = air flow setting @ 80% motor speed
    • Max = air flow setting @ 100% motor speed

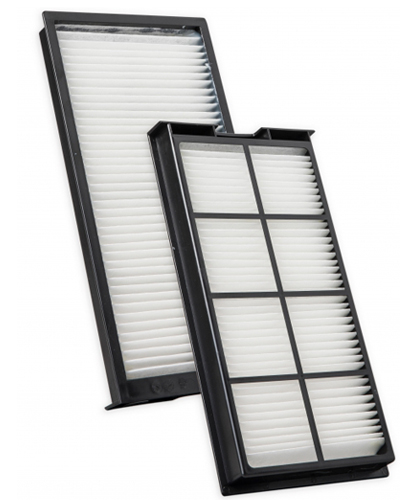

    Replacement Filters

    ComfoAir 200 filters

    ComfoAir 200

    Heat Recovery Unit
